Adaptive Shaft Alignment for Standard Jobs

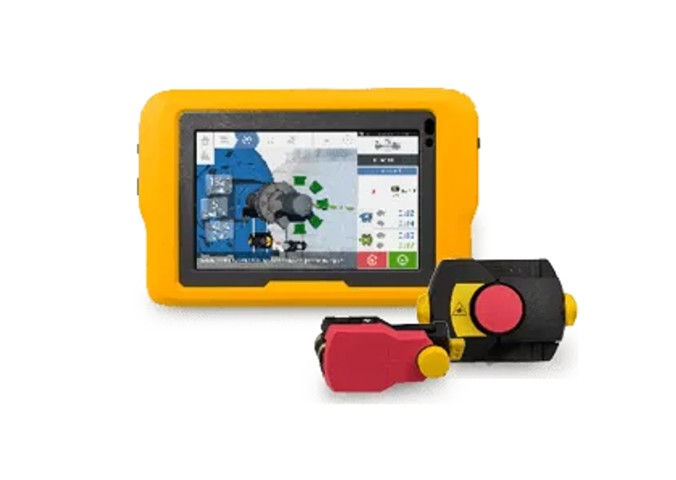

ShaftAlign Touch Laser Shaft Alignment Tool


ShaftAlign touch is a standard laser alignment tool designed to perform quick, high-precision alignments with a variety of measurement modes, and send the data to the cloud for simplified analysis and reporting.


• Superior single-laser technology eliminates pre-alignment & simplifies short-distance measurements

• NEW: Modular platform allows your software & sensor package to evolve with you

• Core alignment tasks: Horizontal/vertical alignment, soft foot, twist/flatness, straightness, machine movement, uncoupled alignment


Product description


A new standard for affordable laser alignment

The new ShaftAlign Touch is a rugged laser alignment system that provides digital, cloud, and other advancements over the decades-old but still widely used dial indicator and feeler gauge.


ShaftAlign Touch is a combination of software and hardware innovations enabling maintenance teams to address a wide variety of alignment challenges that basic laser alignment systems cannot handle.


It also delivers premium Adaptive Alignment capabilities that, until now, were not available in an entry-level system.


Two innovations – single-laser technology and Active Situational Intelligence – differentiate ShaftAlign Touch from the competition.

Together, they deliver the “magic” that enables Prüftechnik alignment products to automatically adapt – in real time, as alignment jobs are finished – to the asset, the situation, and the user’s experience level.


Step up to the high precision and intelligence built into the ShaftAlign Touch: eliminate the time, rework, and guessing common to other approaches. Get more done while enabling your machines to operate at peak performance.



Key Features

• NEW – Your sensors & software package evolves with you: Your alignment tool, your way with our new modular platform – pay for what you need, upgrade when you’re ready, and work on any Android tablet

• Single-laser technology: Ultimate repeatability, better precision at short distances, and NO pre-alignment

• Machine train alignment: 2 machines

• Core alignment tasks: Horizontal/vertical alignment, soft foot, twist/flatness, straightness, machine movement, uncoupled alignment

• User-friendly: Features an easy-to-use touchscreen display and 3D animations with guided procedures, making complex alignment tasks more accessible to users of different skill levels (WiFi & Bluetooth connected)

• Simplified reporting & analysis: User-friendly monitoring and analysis software for sending out data in the field, trending, and reporting
