The only adaptive laser shaft alignment system for EX areas


Advanced laser shaft alignment in EX/ATEX areas



• Intrinsically Safe

• Adaptability saves time and effort

• Best measurement accuracy and repeatability

• Fluke Reliability Extended Warranty Program



Product description

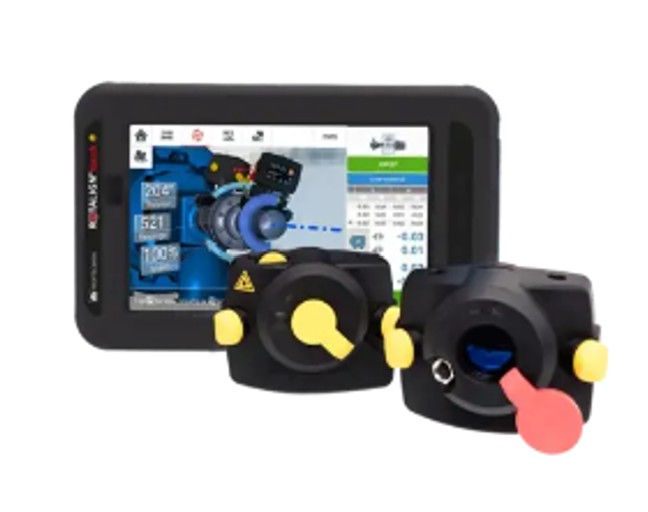

ROTALIGN touch EX is Zone 1 ATEX/IECEX certified. Packed with user-friendly alignment features unique to PRUFTECHNIK, the ROTALIGN touch EX shortens the measurement time with:

• Continuous SWEEP Mode for high-quality measurement in only one shaft rotation

• Live Move function for simultaneous real-time machine corrections in both horizontal and vertical directions

• vertiSWEEP to measure vertical machines in one rotation of the shaft
  Cardan shaft rotating-arm bracket allows measurements to be performed without removing the shaft

• Soft Foot Wizard to diagnose soft foot problems

• Move Simulator lets the operator simulate shim values and horizontal corrections before moving the machine


Key Features


• ATEX/IECEx Zone 1 certified including ruggedized IP68 tablet device

• Active Situational Intelligence

• Simultaneous Horizontal and Vertical Live Move + Move Simulator

• Thermal growth and targets

• Spacer coupling and in-situ Cardan shaft alignment with rotating arm bracket

• Soft Foot Wizard to diagnose soft foot problems

• 6-machine train alignment

• Advanced vertical machine alignment with vertiSWEEP continuous measurement mode

• ALIGNMENT RELIABILITY CENTER 4.0 PC software including auto-activation and PDF reporting

• Mobile connectivity with integrated Wi-Fi, Bluetooth, RFID and camera
